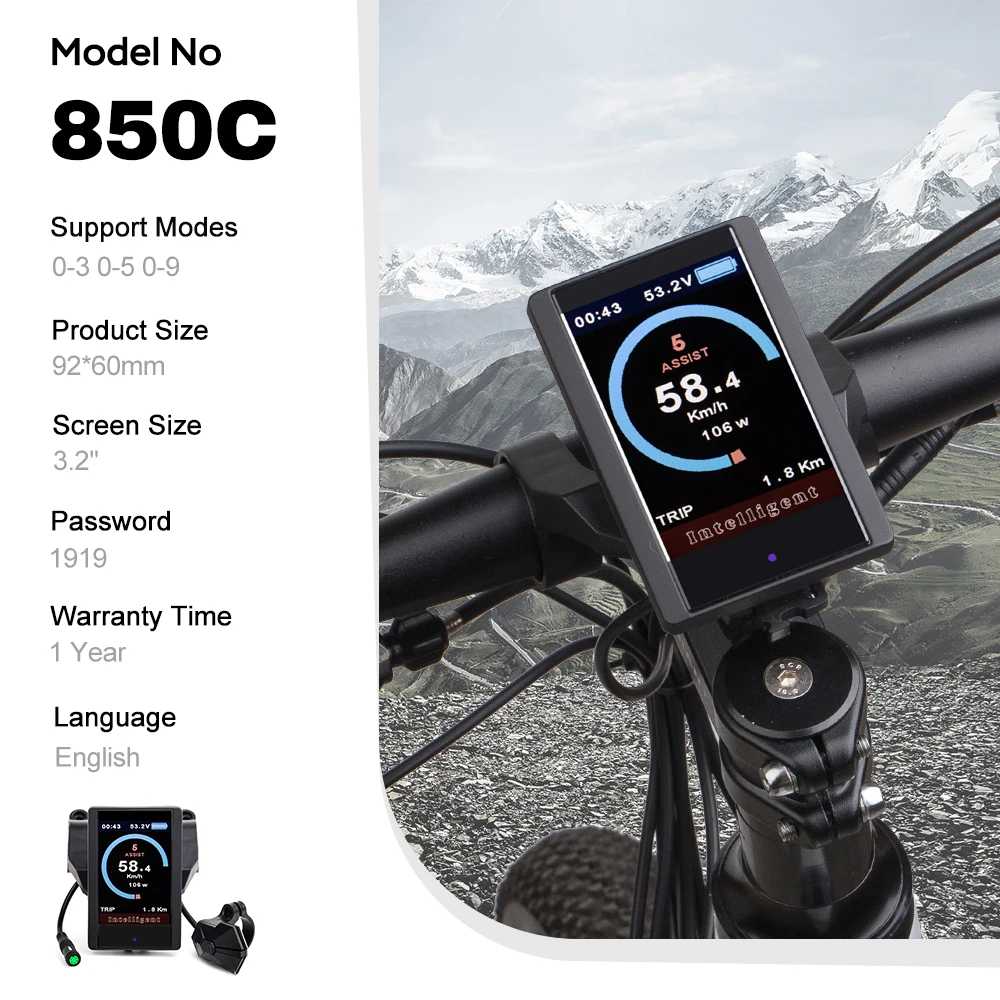

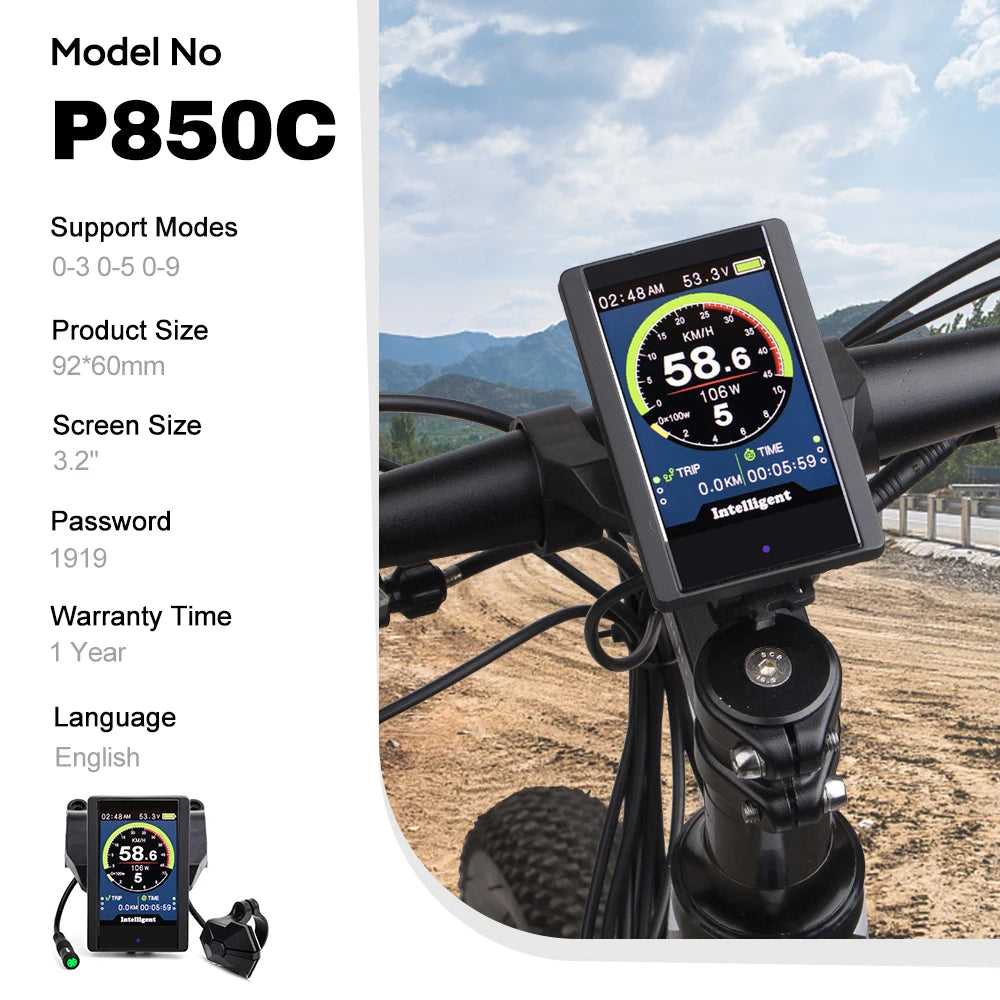

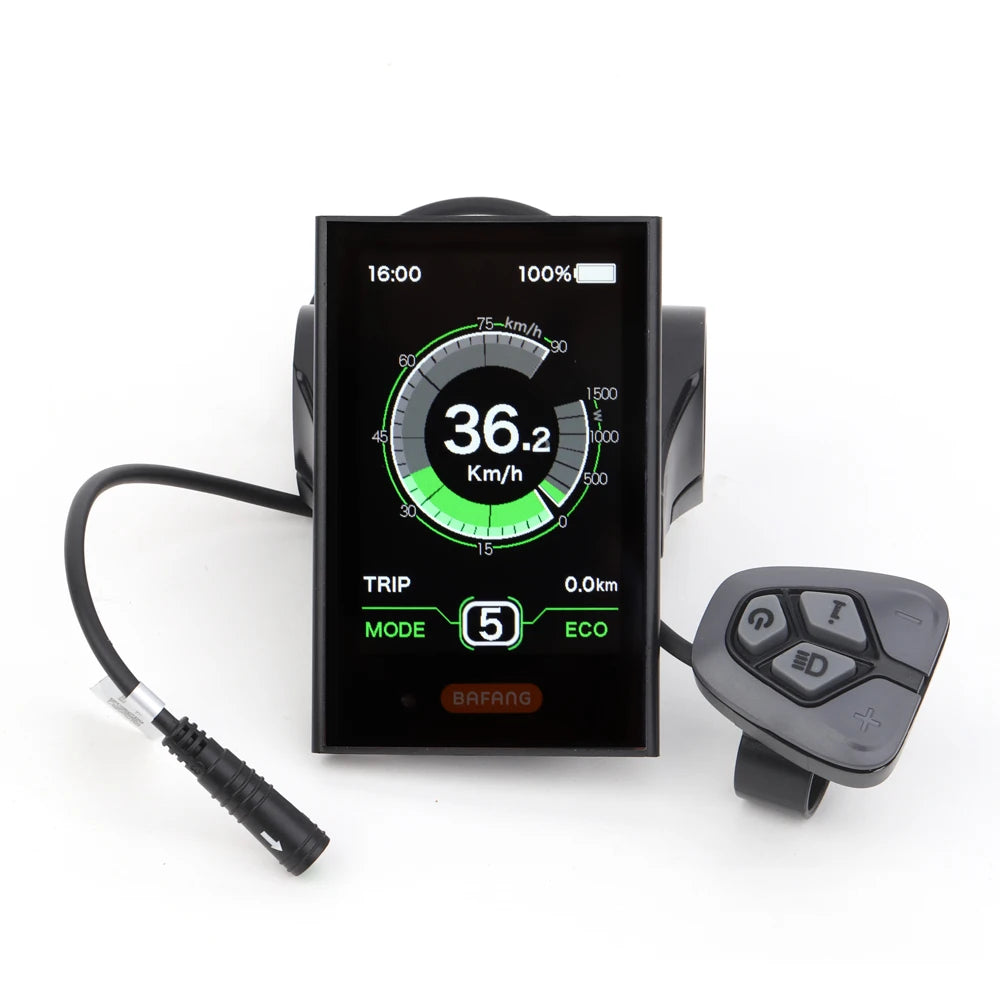

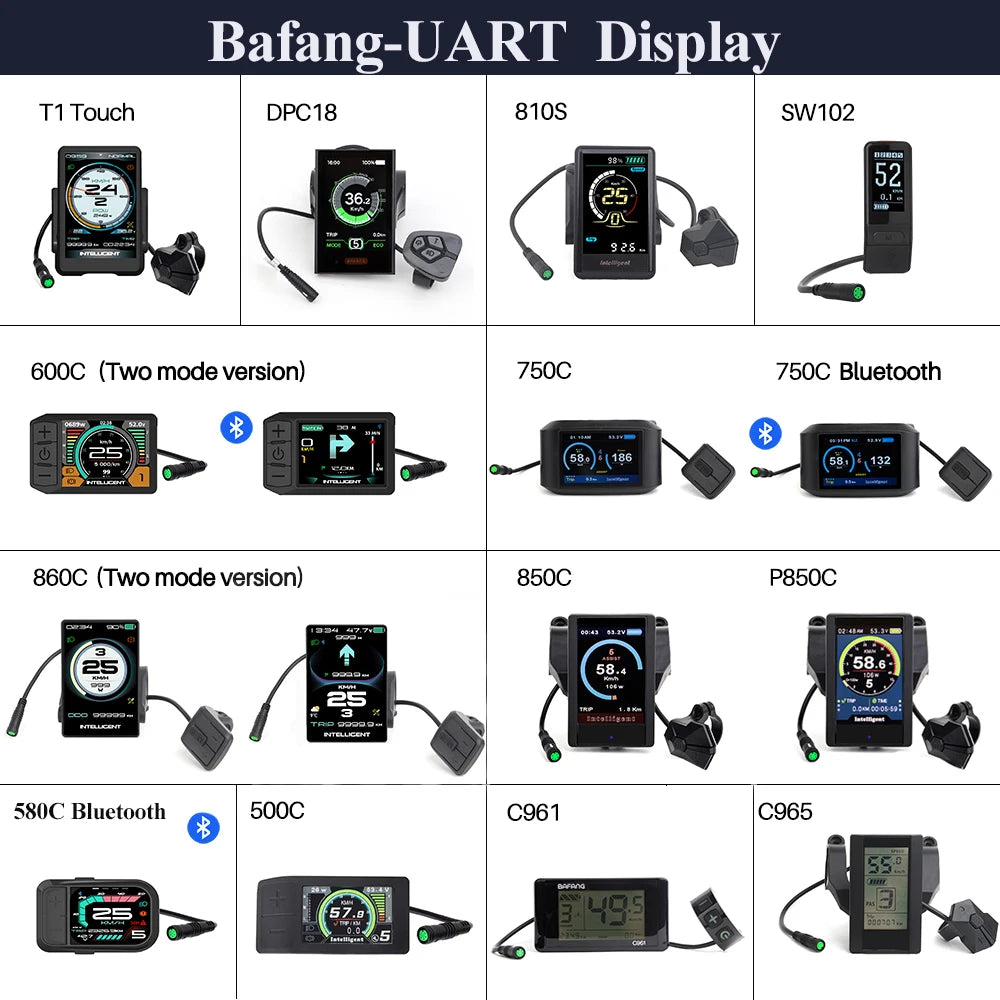

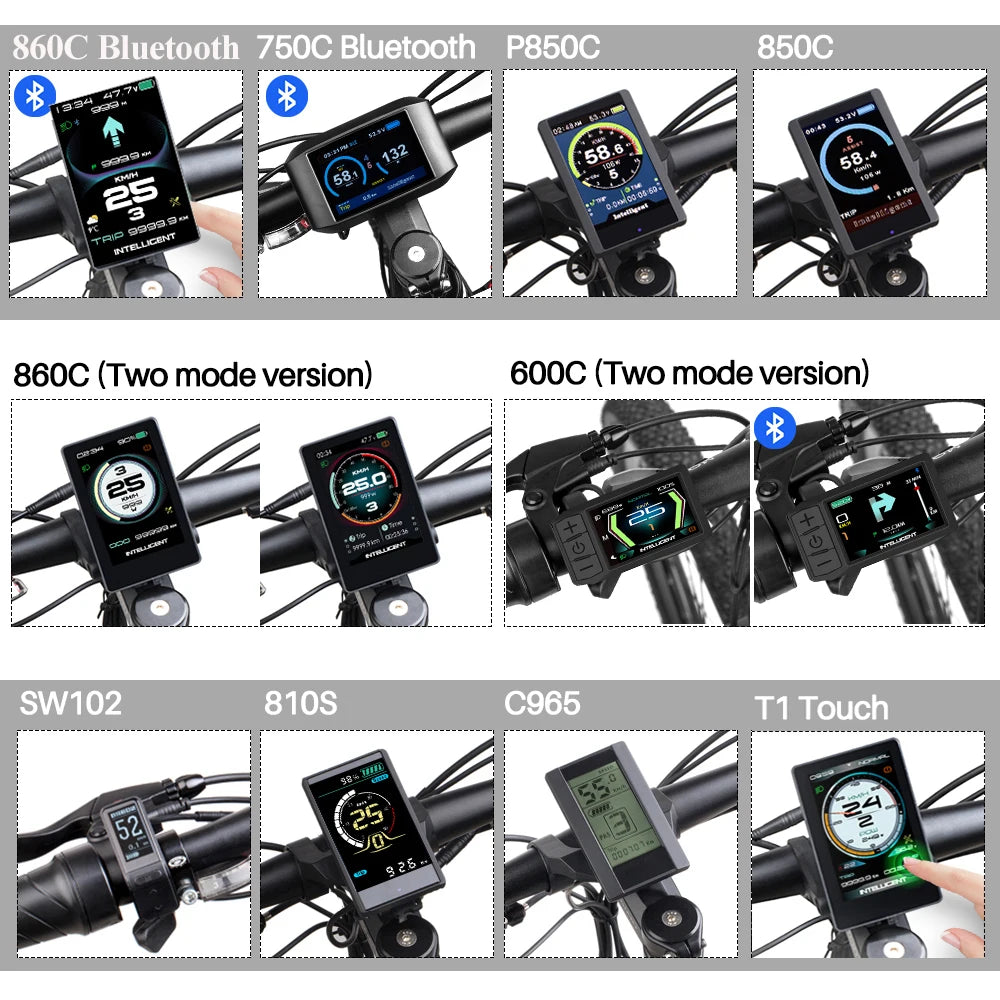

Bafang LCD Color Display Instrument 36V 48V 52V P860C 860C P850C 600C C965 DPC18 BF-UART Protocol Bluetooth 750W Motor E-bike

Bafang LCD Color Display Instrument 36V 48V 52V P860C 860C P850C 600C C965 DPC18 BF-UART Protocol Bluetooth 750W Motor E-bike

$70.99 USD
$0.00 USD $70.99 USD
Sale Sold out
Shipping calculated at checkout.
Color
Ships From

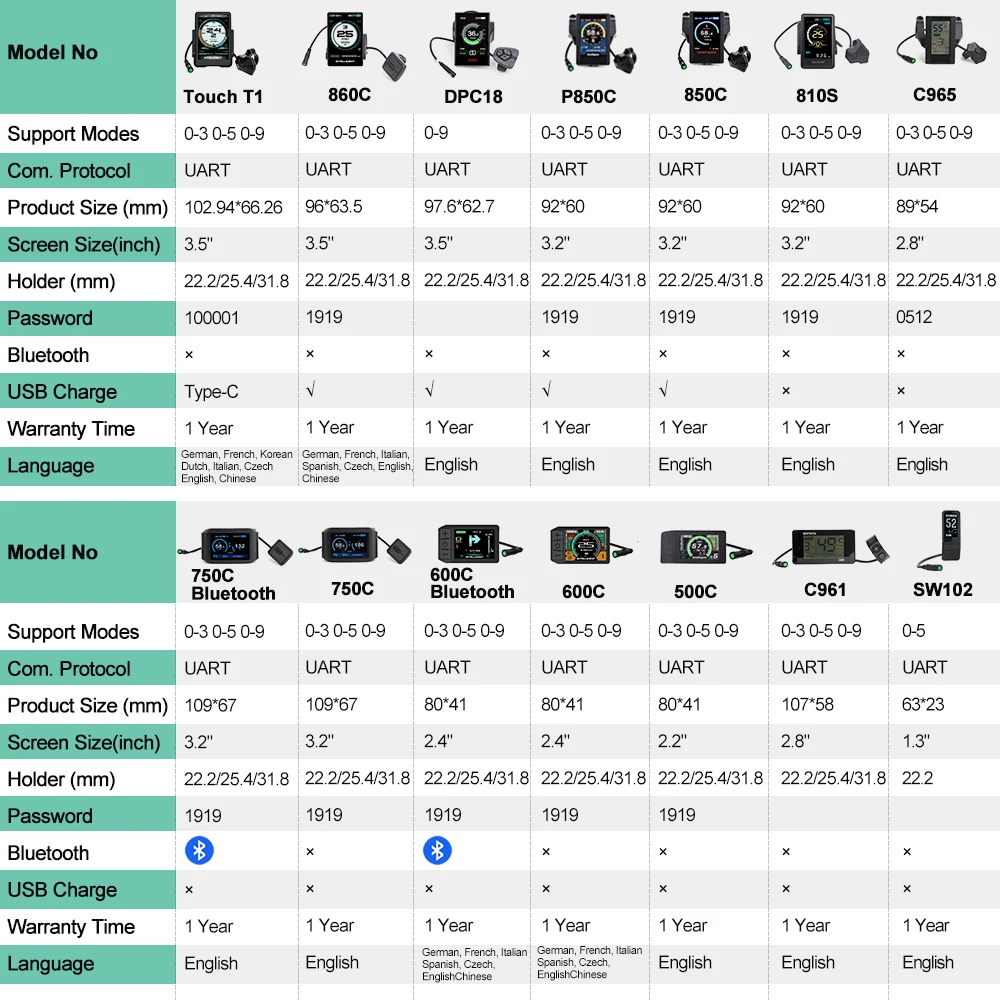

SPECIFICATIONS

Brand Name: Broercok



Communication protocol: BF-UART

Display Cable Connector/length: 5 PIN Female/ 500MM

Display Voltage: 36V 48V 52V

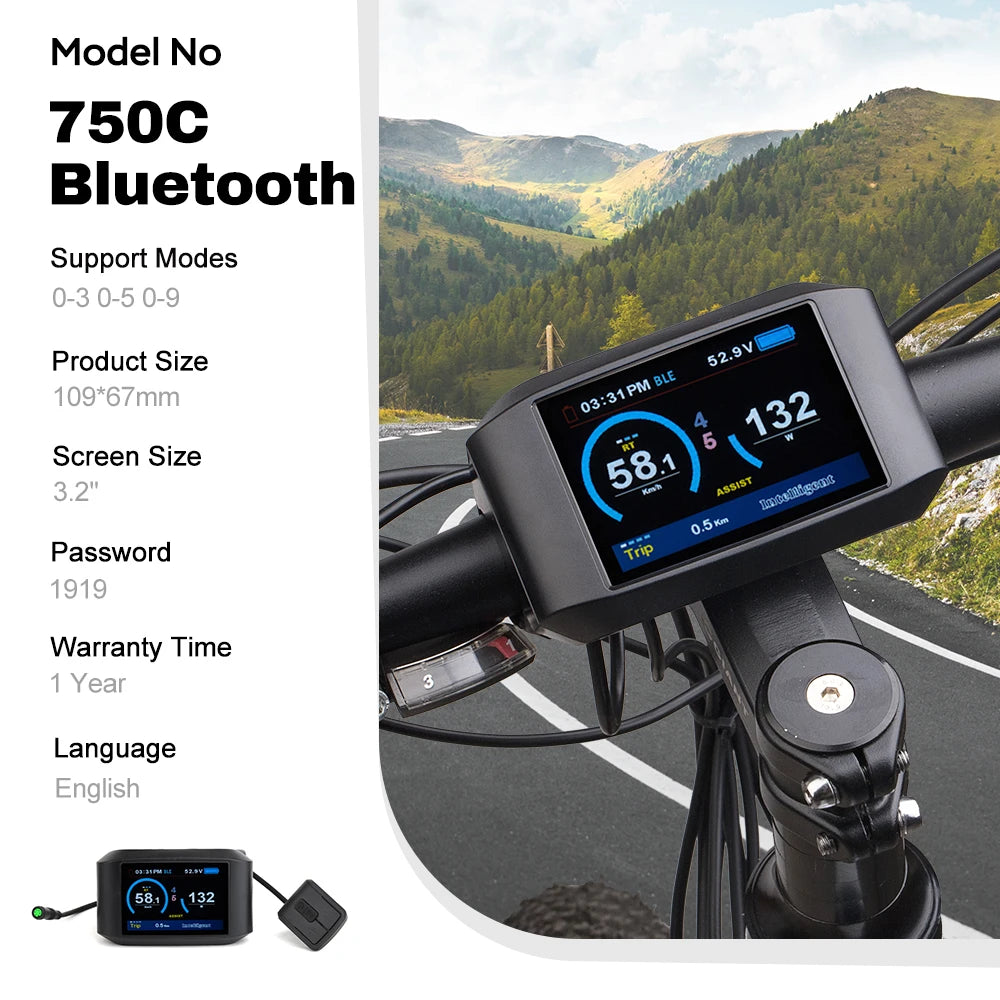

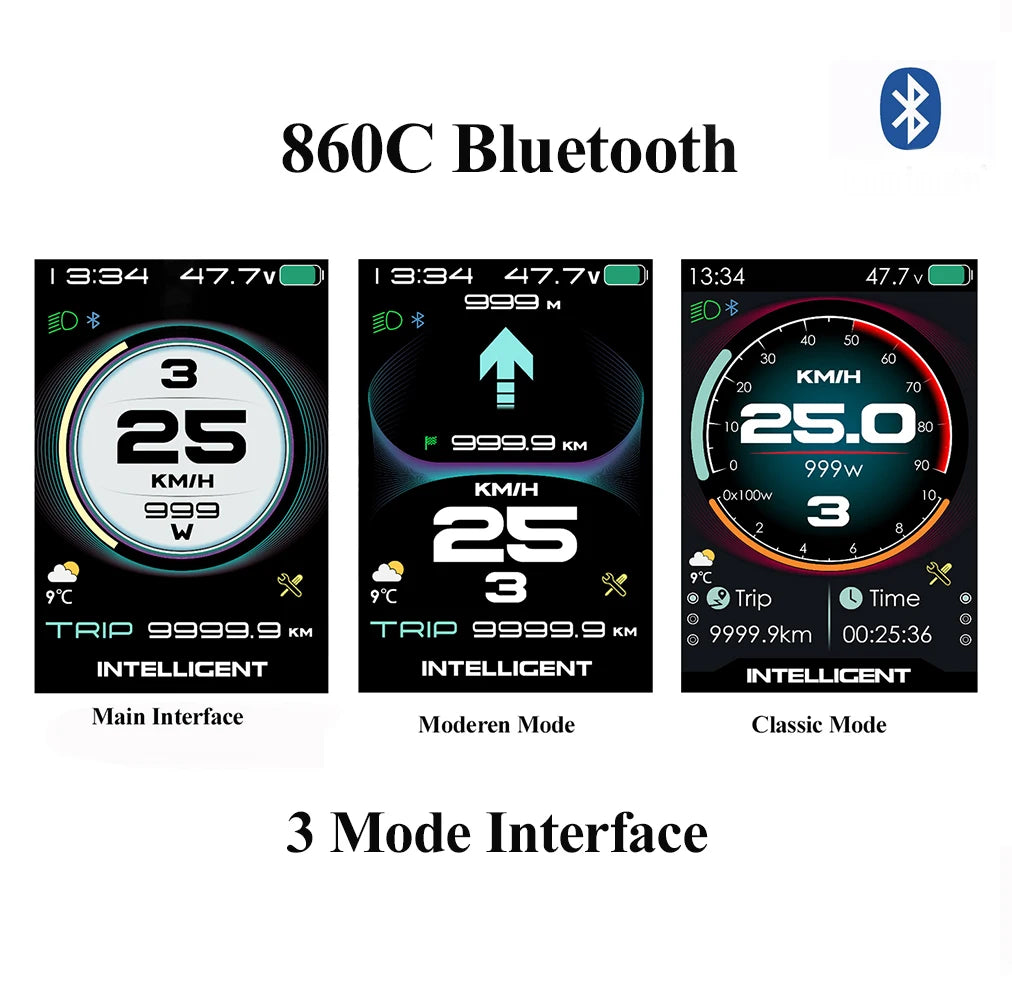

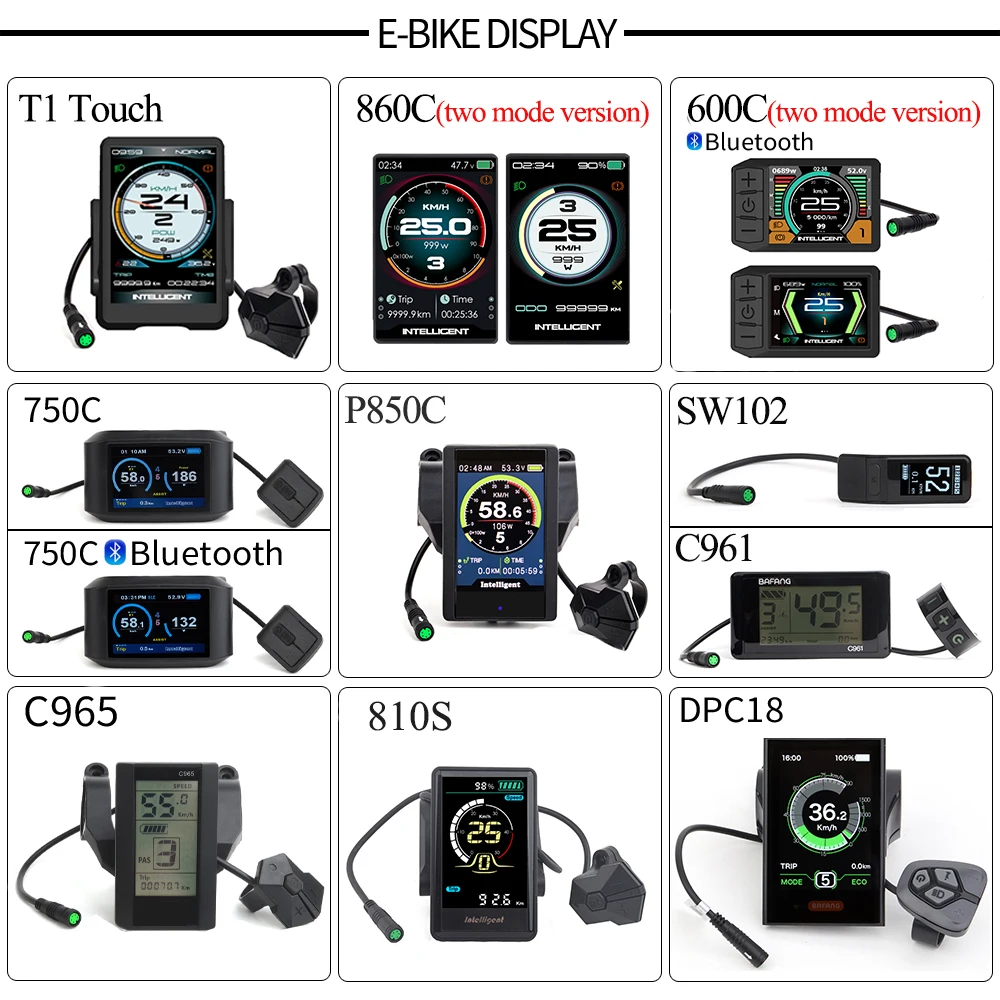

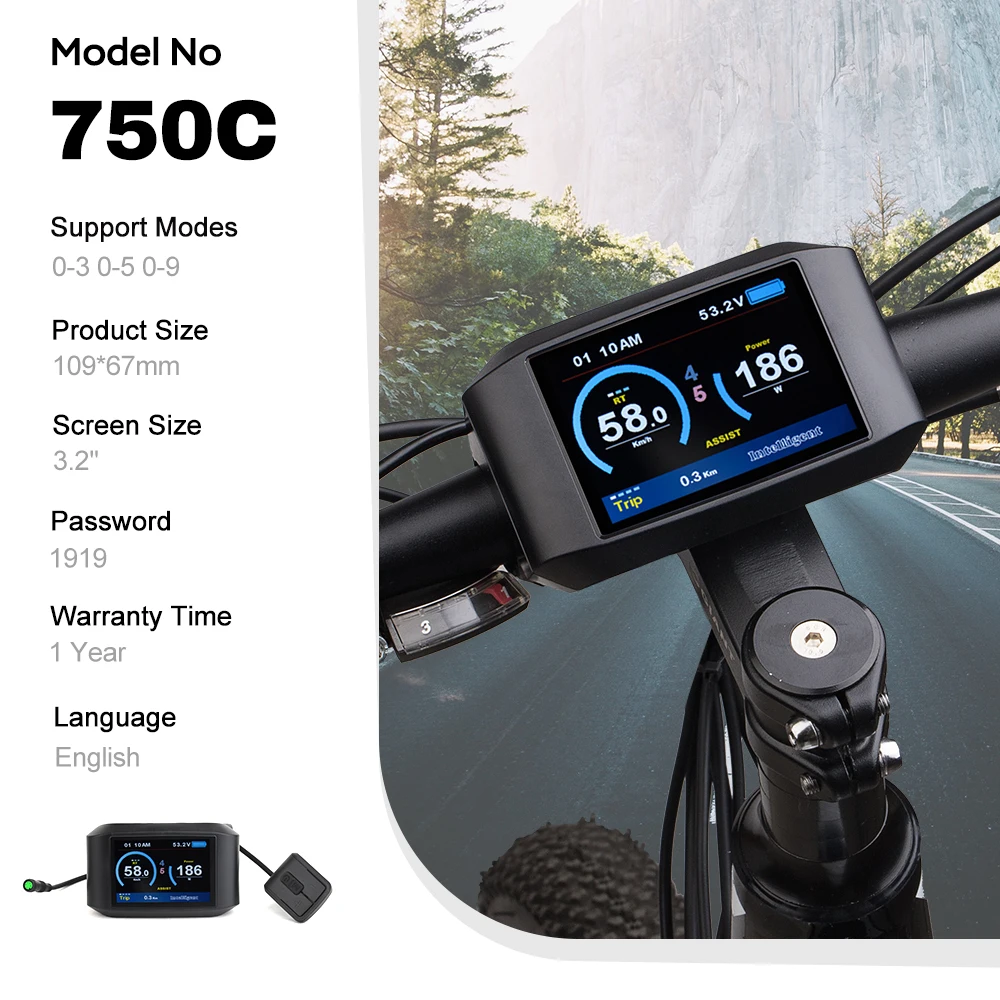

Display With Bluetooth: 860C Blutooth,600C Bluetooth,750C Bluetooth,580C

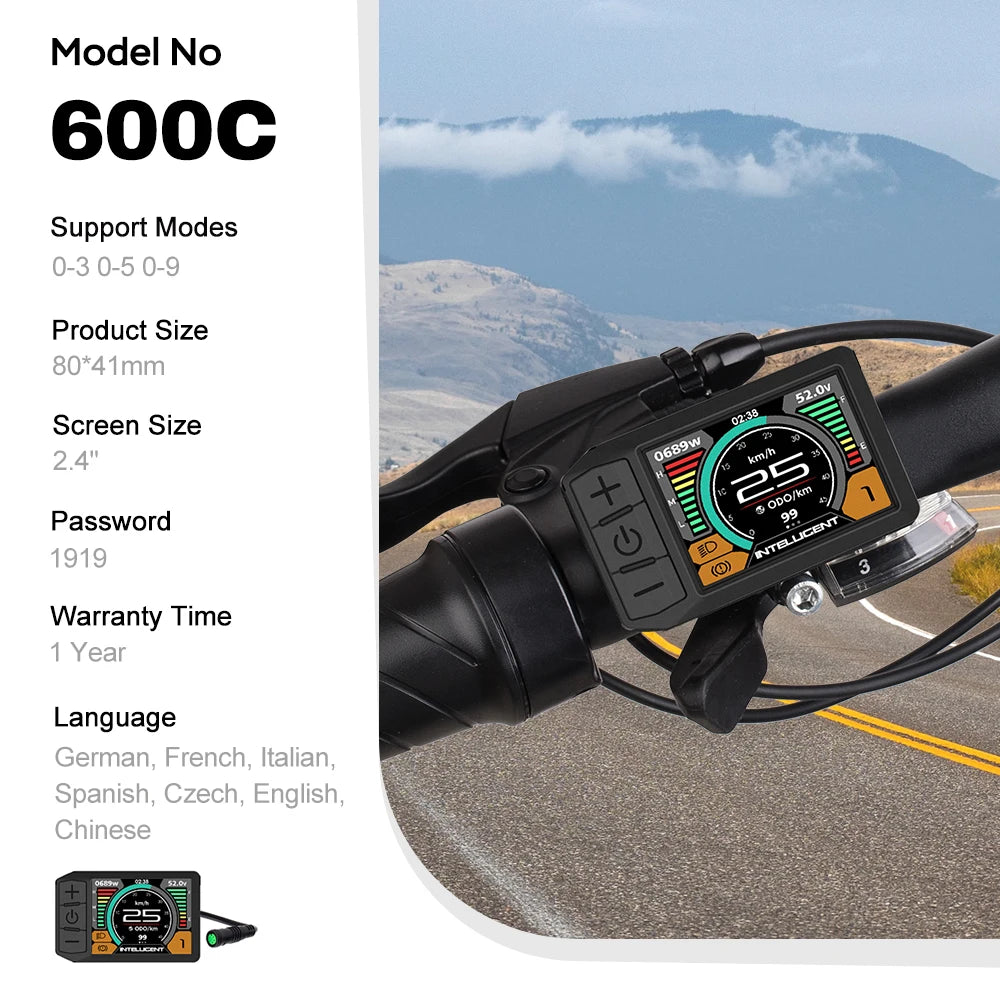

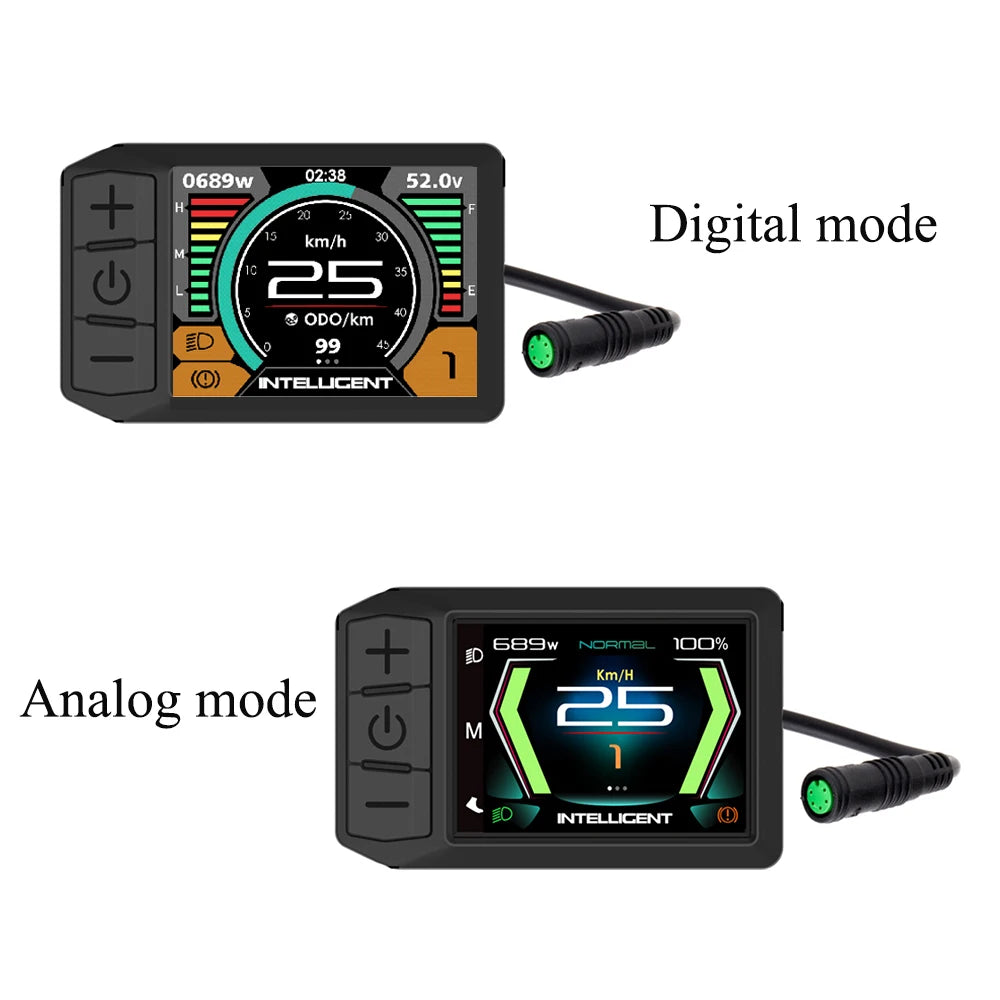

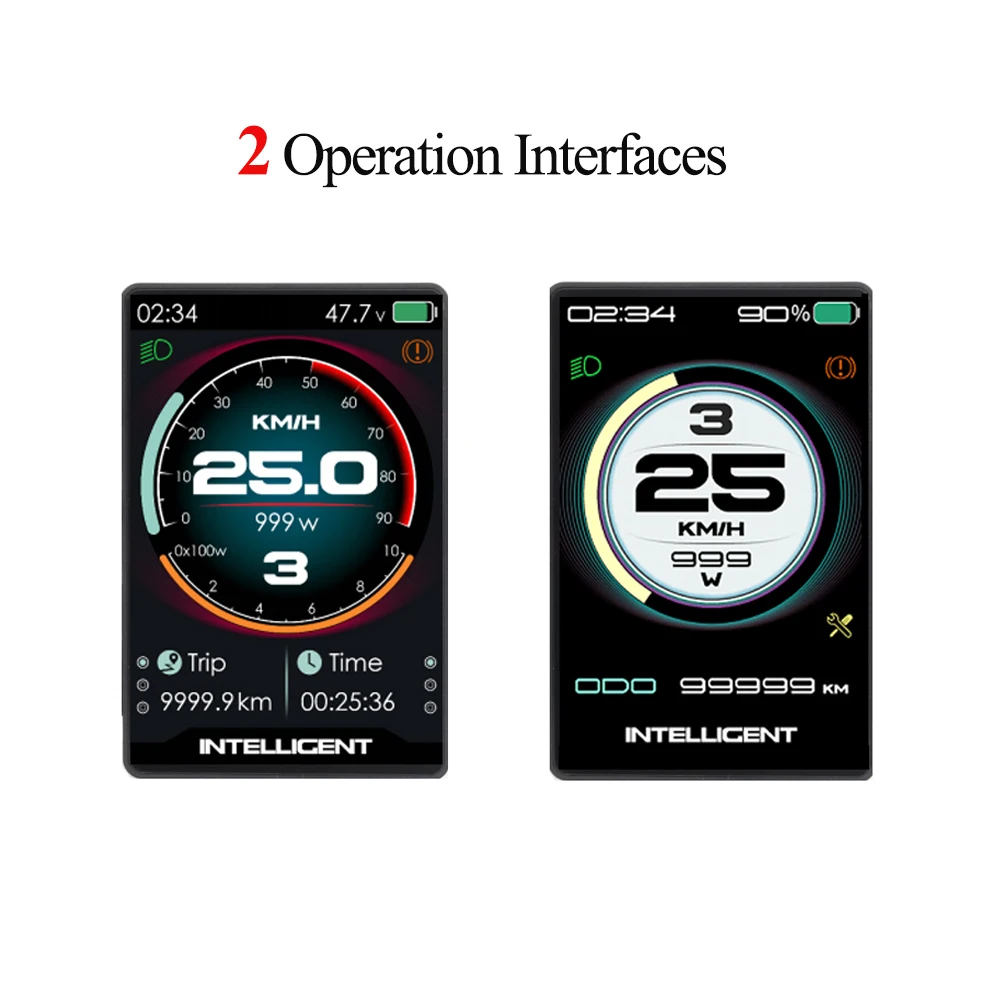

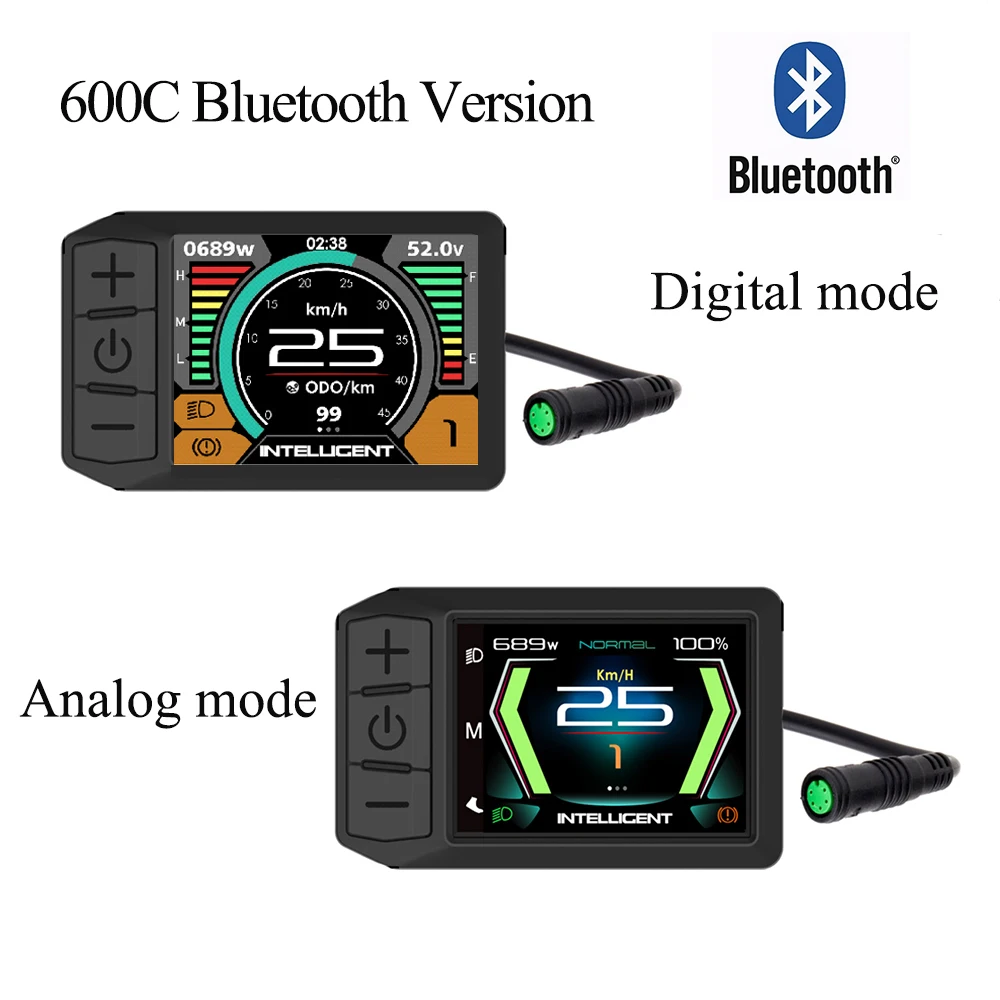

Display With Two Mode: 600C,600C Bluetooth,860C ,860C Sports,860C Bluetooth

MAX Speed: 99KM/H

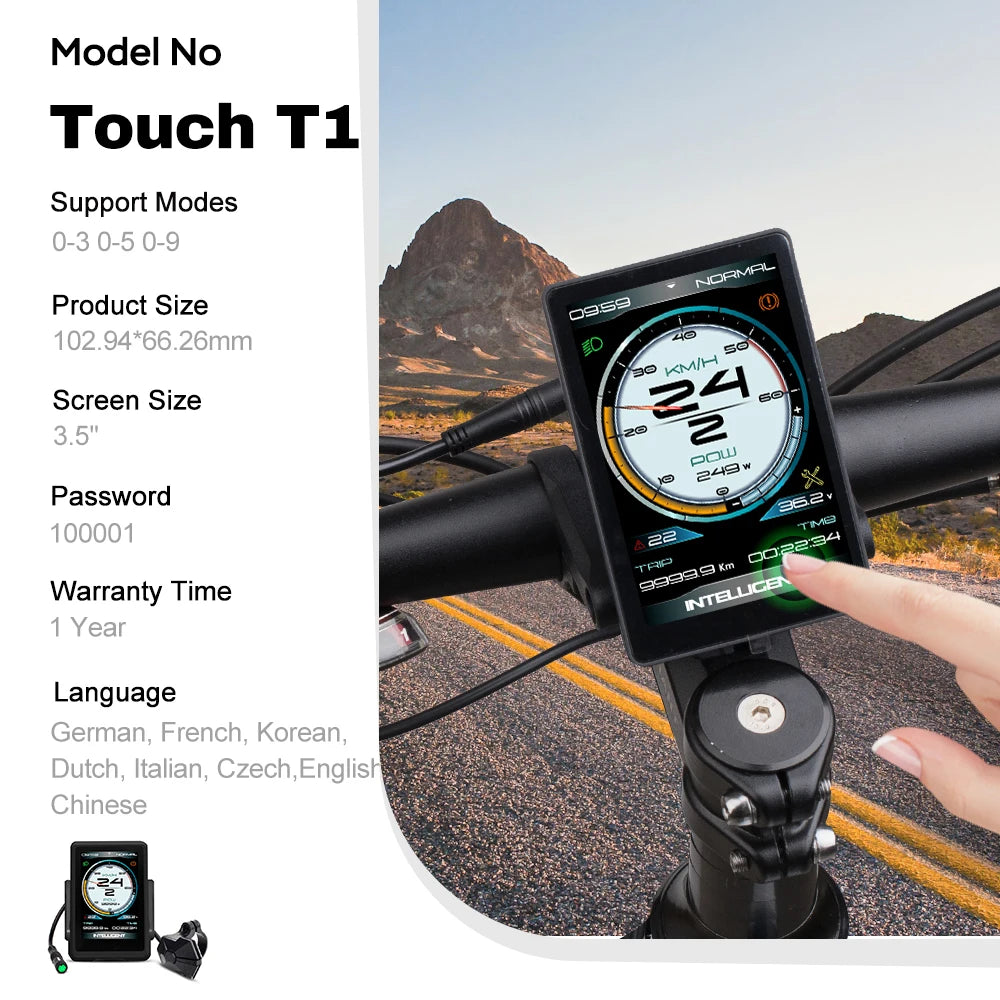

Multilanguage: 600C /860C/ T1Touch/750C/750CBLU

Only Applicable To: Bafang Mid/Hub Drive Motor Kits

Operating Temperature: -20-45℃

Order more than 2pcs: Free customization of startup interface and bottom logo

Speed Level: 0-3 0-6 0-9

Type: Display

Warranty Time: two years



Note：

  • These Display Only Applicable To Bafang Mid/Hub Drive Motor Kits

  • Communication Protocol:BF-UART

  • Connector: 5PIN Female Circular Connector

  • If your motor is not Bafang brand,these goods not fit for you,if your motor kits use other Communication Protocol,this display not fit for you too,please contact with us before you make order except you make sure our display fit for you .We can also customize the display.

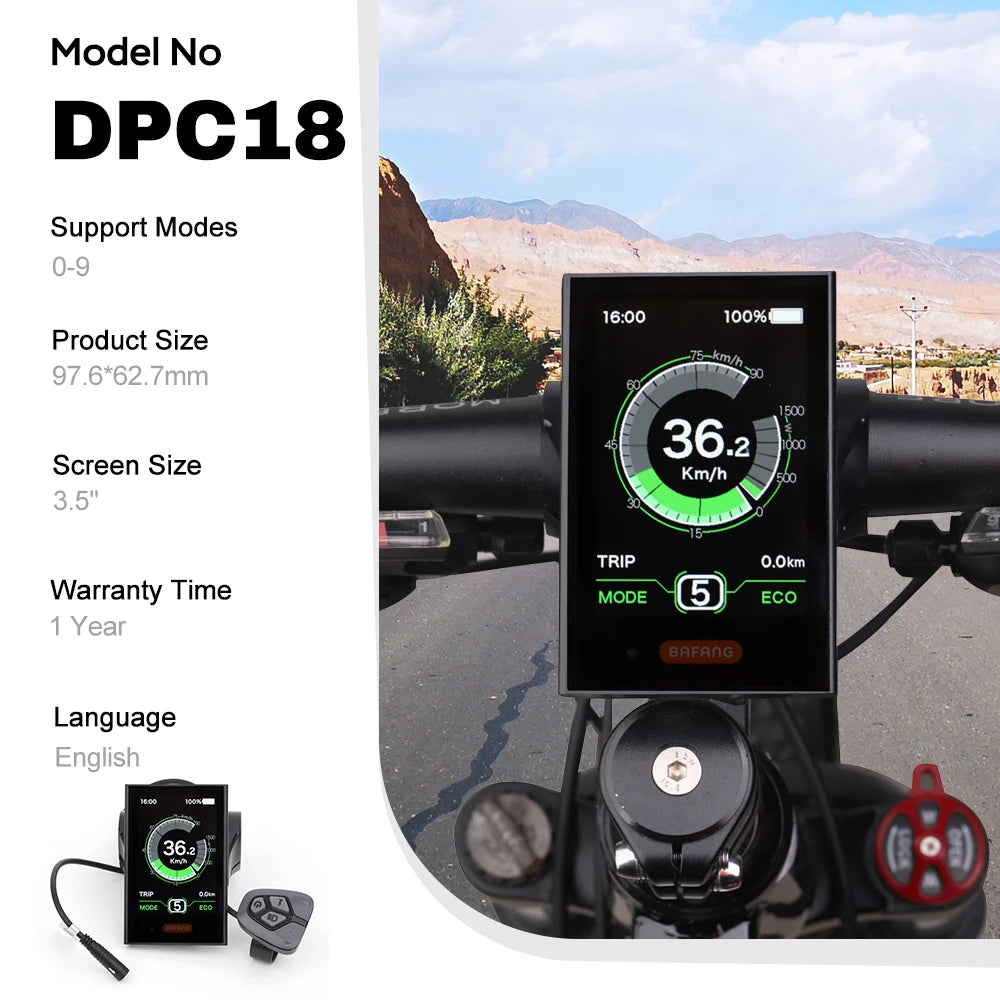

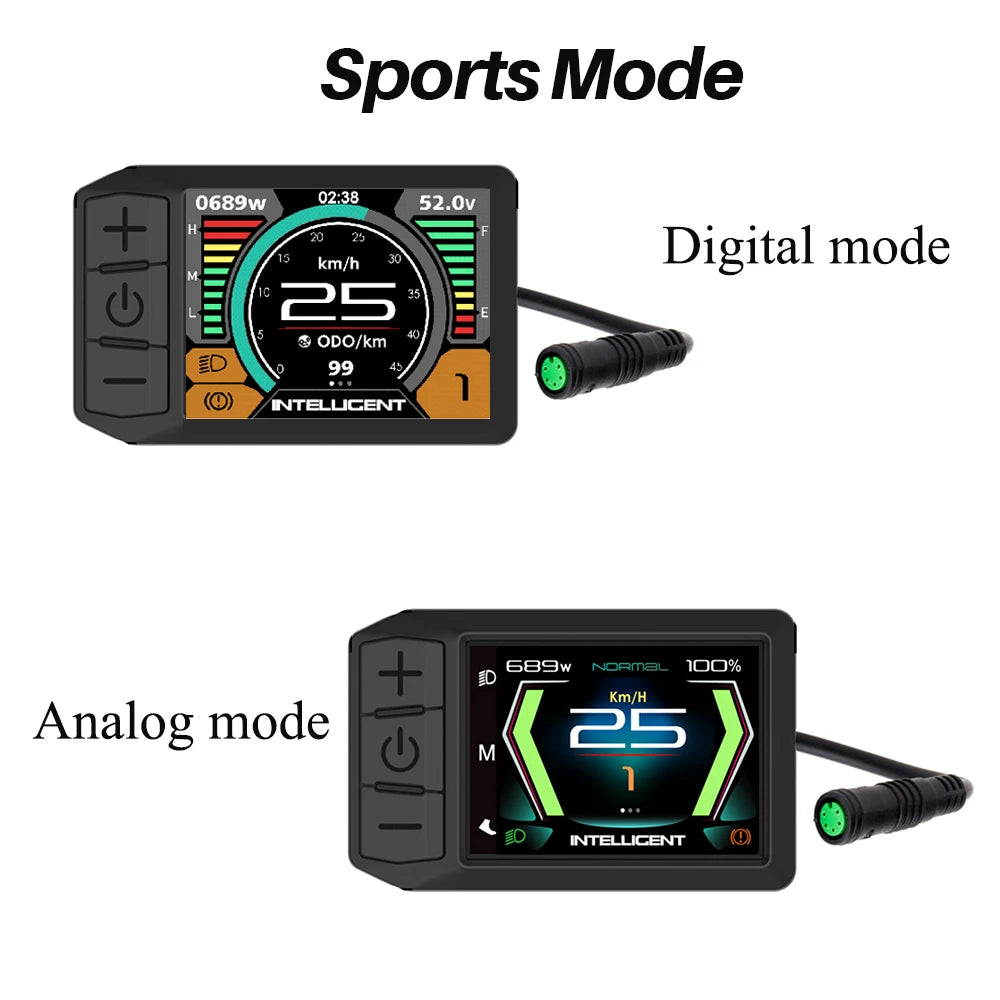

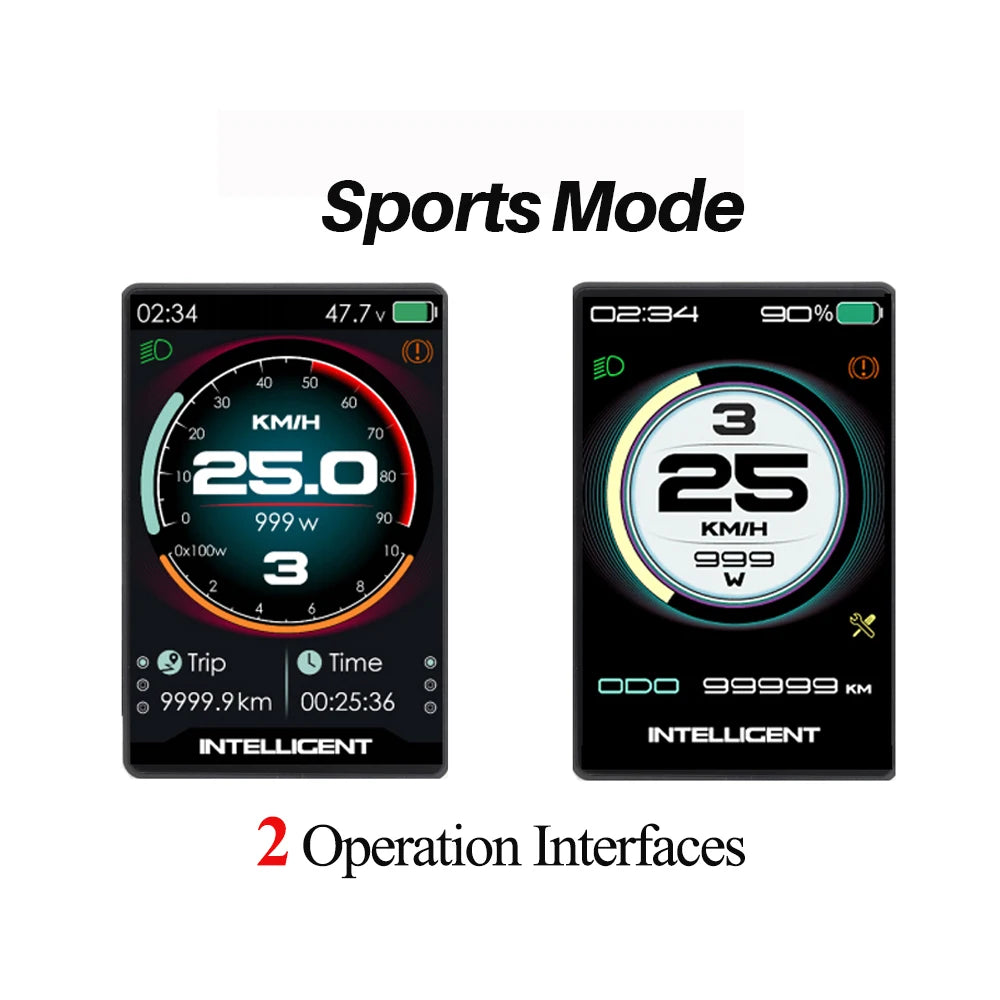

  • Sports Mode: Only (860C Sports Mode, 600C Sports and DPC18 Sports Mode) have.

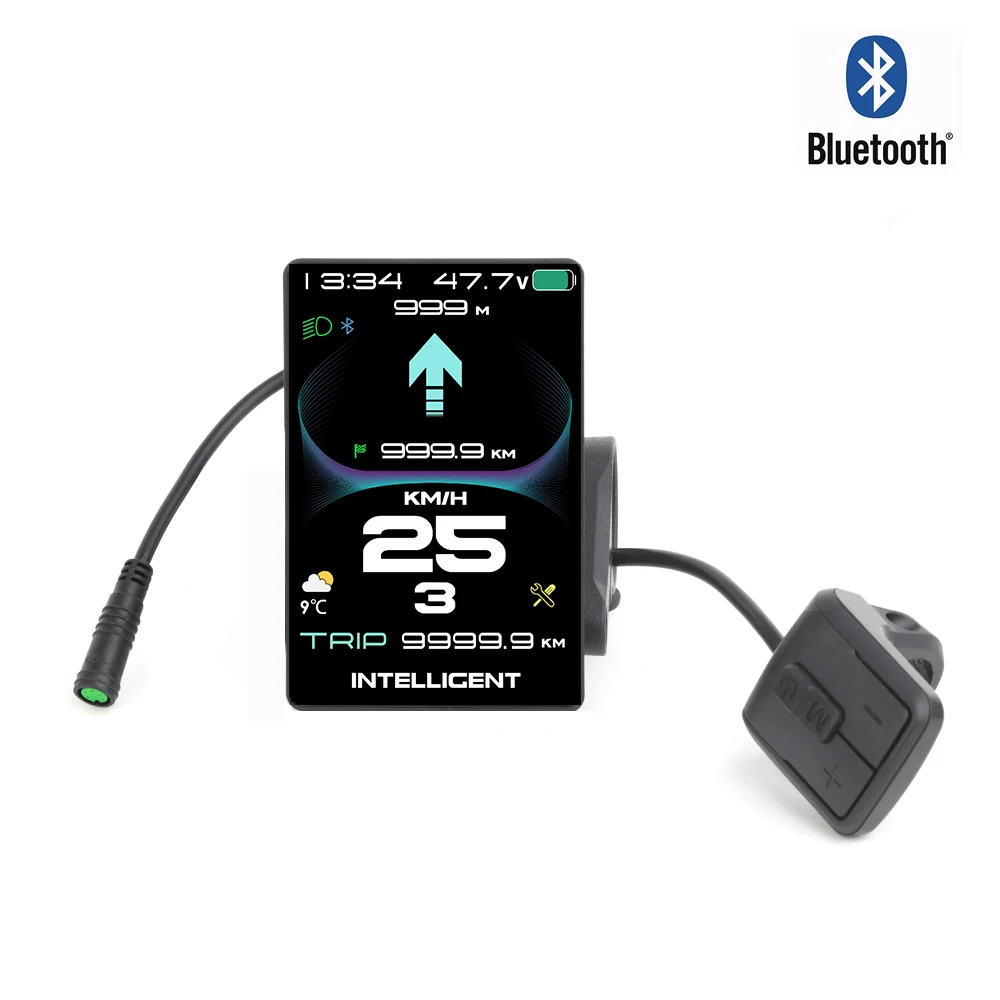

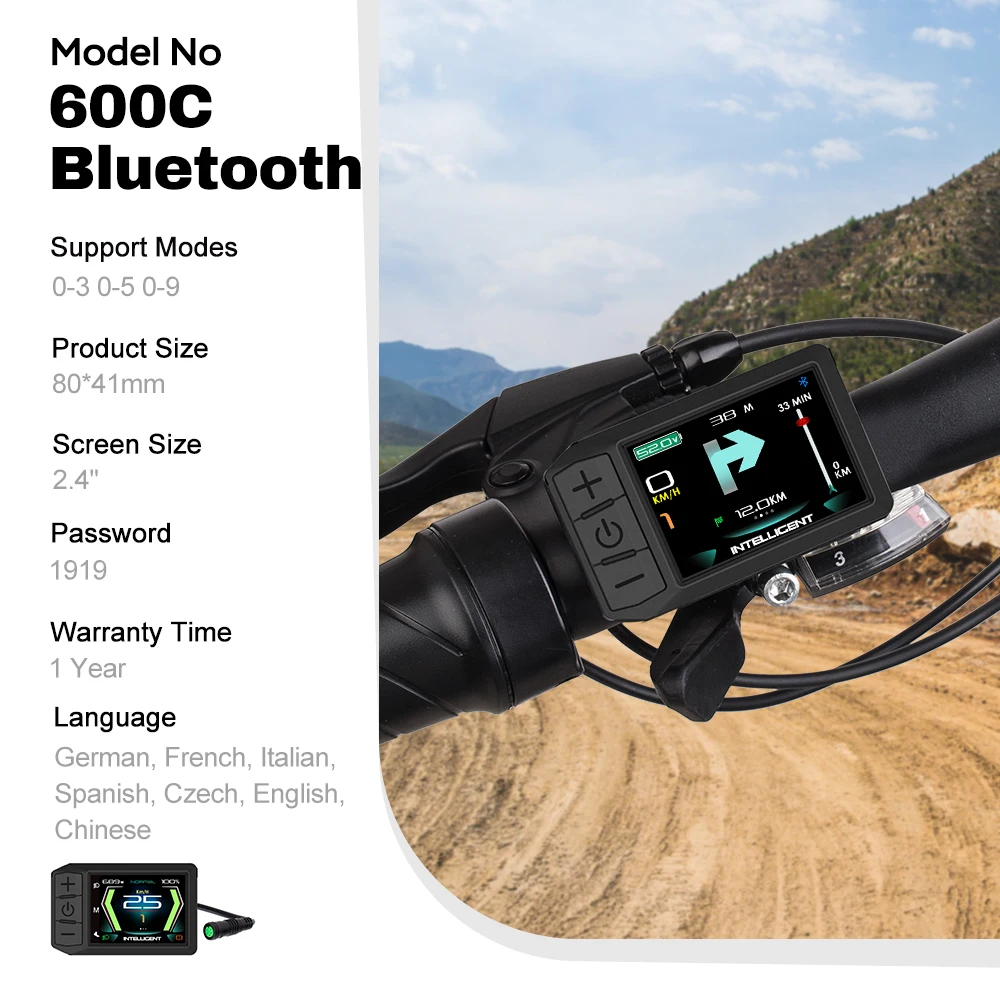

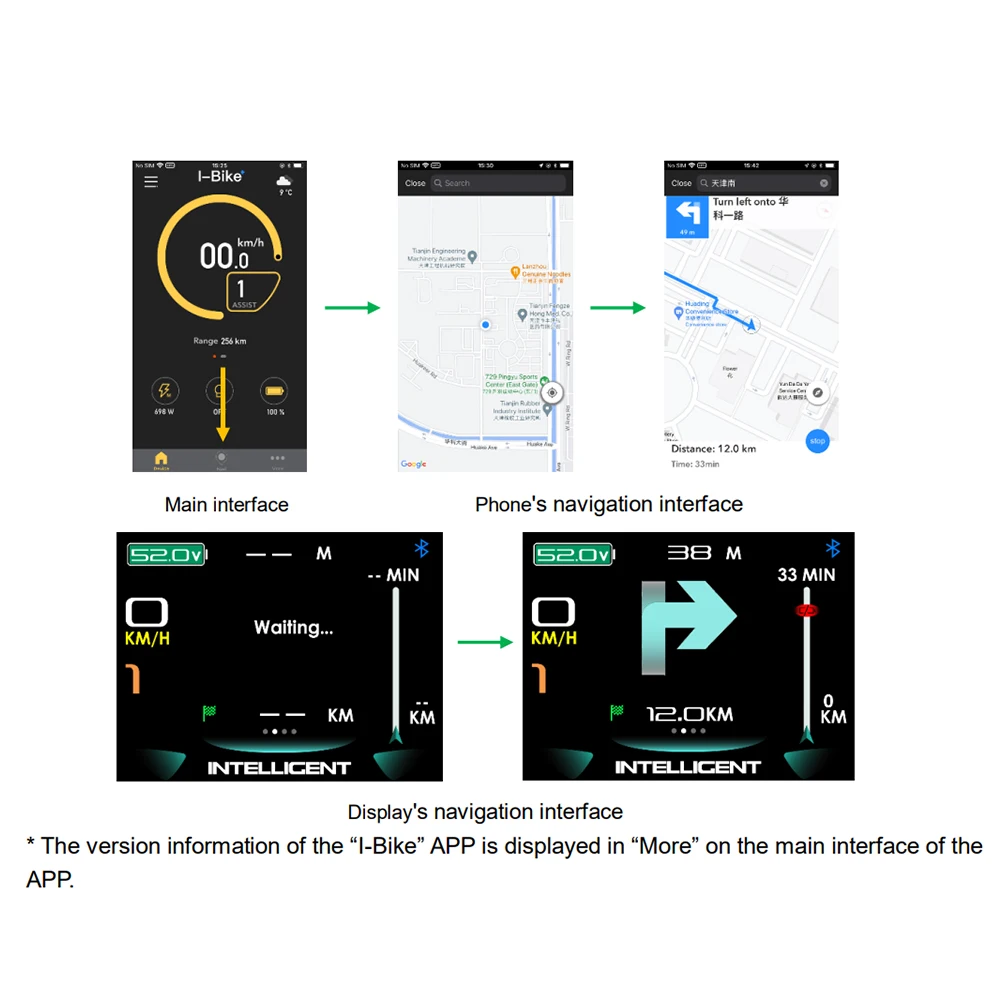

  • Bluetooth：Only (860C Bluetooth,600C Bluetooth,750C Bluetooth and 580C Bluetooth) have bluetooth functions.

  • UART has two protocols, BF-UART and 5S-UART, which are not universal. General UART protocols can be determined by the connector，most of the 5pin circular connector uses the BF-UART protocol, while the male connector uses the 5S-UART protocol.The CAN protocol uses triangular connectors.


Caution:

Do not plug in or unplug this display when the power to the unit is on.
Avoid collisions.
Protect the display’s membrane to provide water resistant performance.
Do not attempt to reset parameters if the display is not working.
Call for service if the display is not working.
Installation:

Install the display and button control on the handlebar and adjust its location. Plug it into the controller with power off.


Our advantages：if you order more than 2 instruments, we can customize the startup interface and bottom logo for free.(Customer orders one instruments or didn't contact with us after order without customization service.)

  • Customizable content：Bottom LOGO for starup display and standby mode.

  • order =1 or 2 pcs: 10usd fee

  • order more than 2 pcs: free

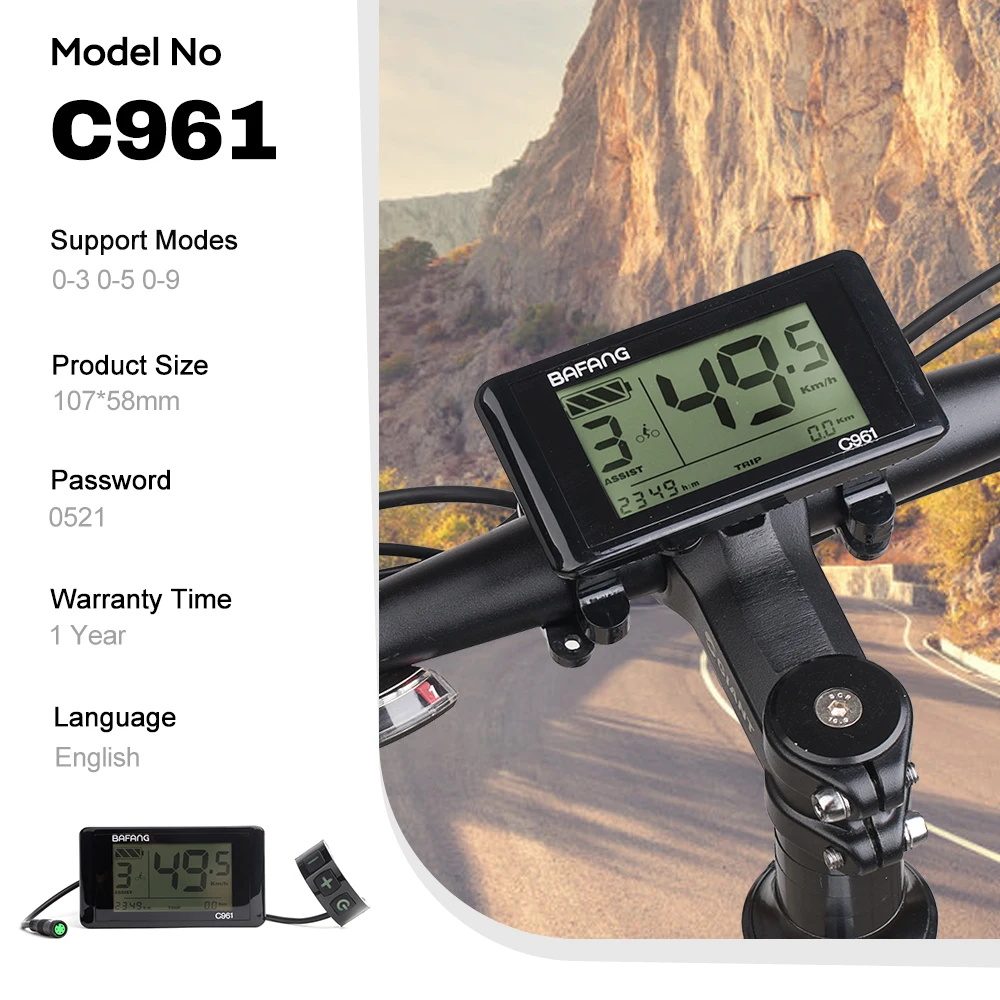

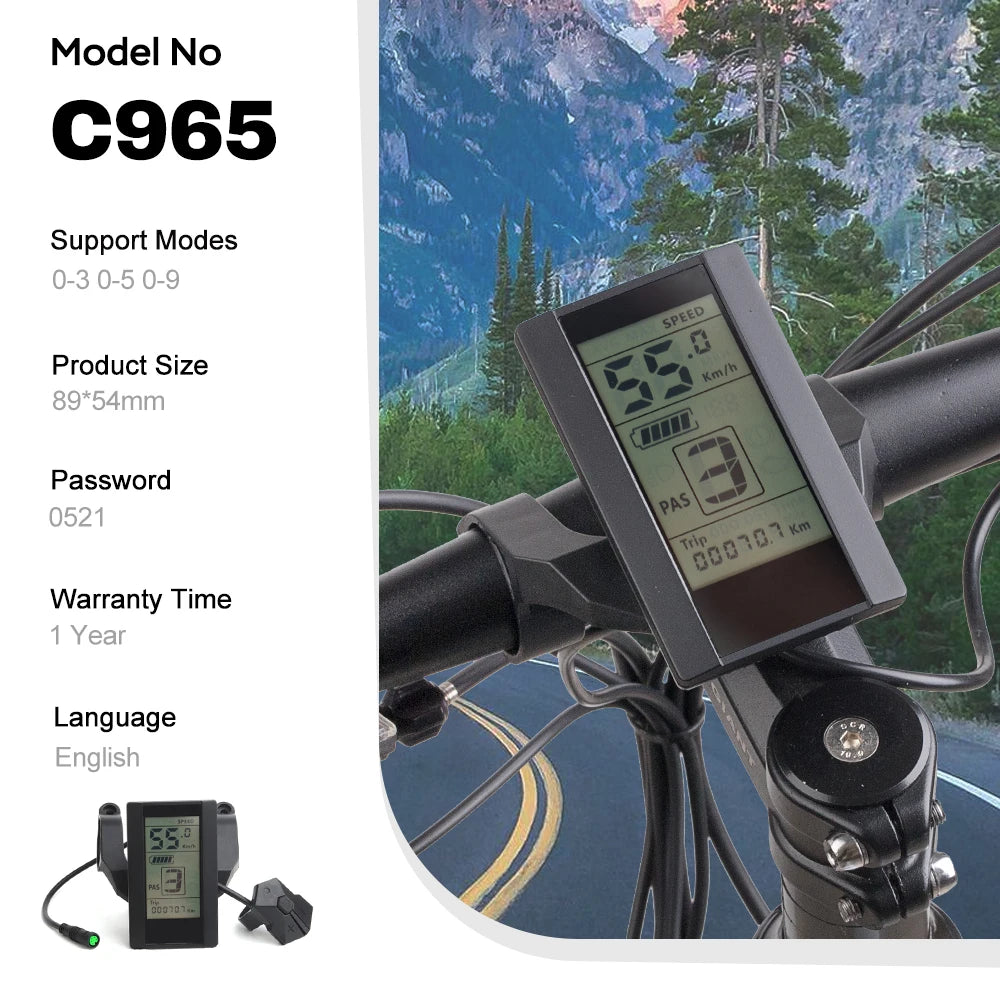

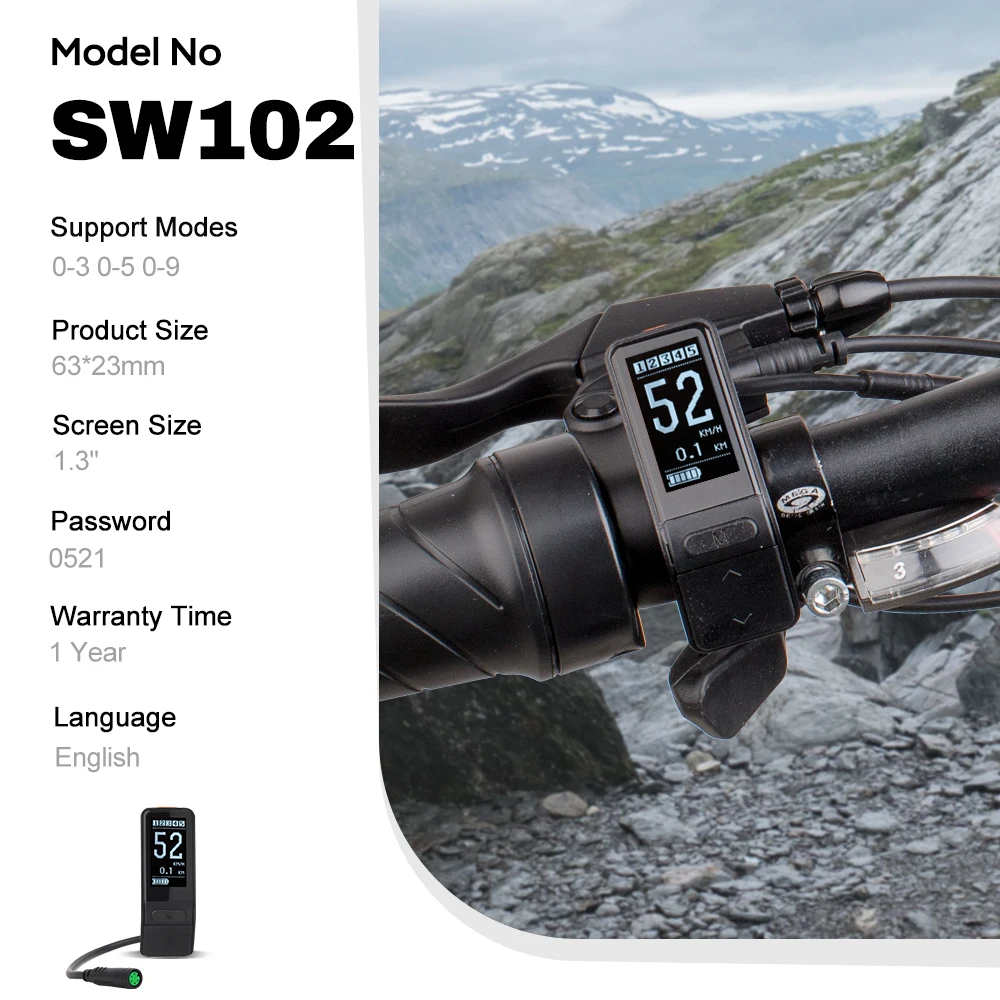

  • All instruments can be customized except DPC18,C961,C965 and SW102

  • If customization is not requested within 12 hours after placing the order, the instrument will not be customized by default.



Warranty Aggrement:

  • Motor Kits,warranty time12 month except phycial damage and wrong operation.

  • Battery,warranty time12 month except phycial damage and wrong operation.

  • Accessories,12 month except phycial damage and wrong operation

Return & Refund:

It is our pleasure to see customers have fun with our products, if you decide to return

the items within 15 days after receipt,we will refund you, the return items must be in

original conditions.

Feedback:

Your satisfaction and positive feedback is very important for us, it will be very kindof you

to leave us 5 stares feedback, if you have any problems, feel free to ask us, we

will do our best to give you service.
